Rigid Frame Construction

• High-strength cast iron base designed for maximum vibration dampening, ensuring consistent lapping accuracy and machine longevity.

Dual-Drive System

• Top and bottom lapping plates driven by independent frequency-controlled motors for precision speed control and optimal process efficiency.

Precision Spindles

• Fitted with ultra-precision bearings to maintain rotational accuracy and flatness during the lapping cycle.

Pneumatic Load Control

• High-accuracy pneumatic loading system using proportional valves to maintain constant pressure and ensure uniform surface finishes.

Smart Control System

• PLC + HMI-based touch panel allows full process customization including lapping time, pressure, speed, and dressing cycle.
• Capable of storing multiple process recipes for different components.

Integrated In-Process Measurement

• SONY sensor-based thickness gauge with 0.001 mm accuracy provides real-time feedback for batch consistency.

Application

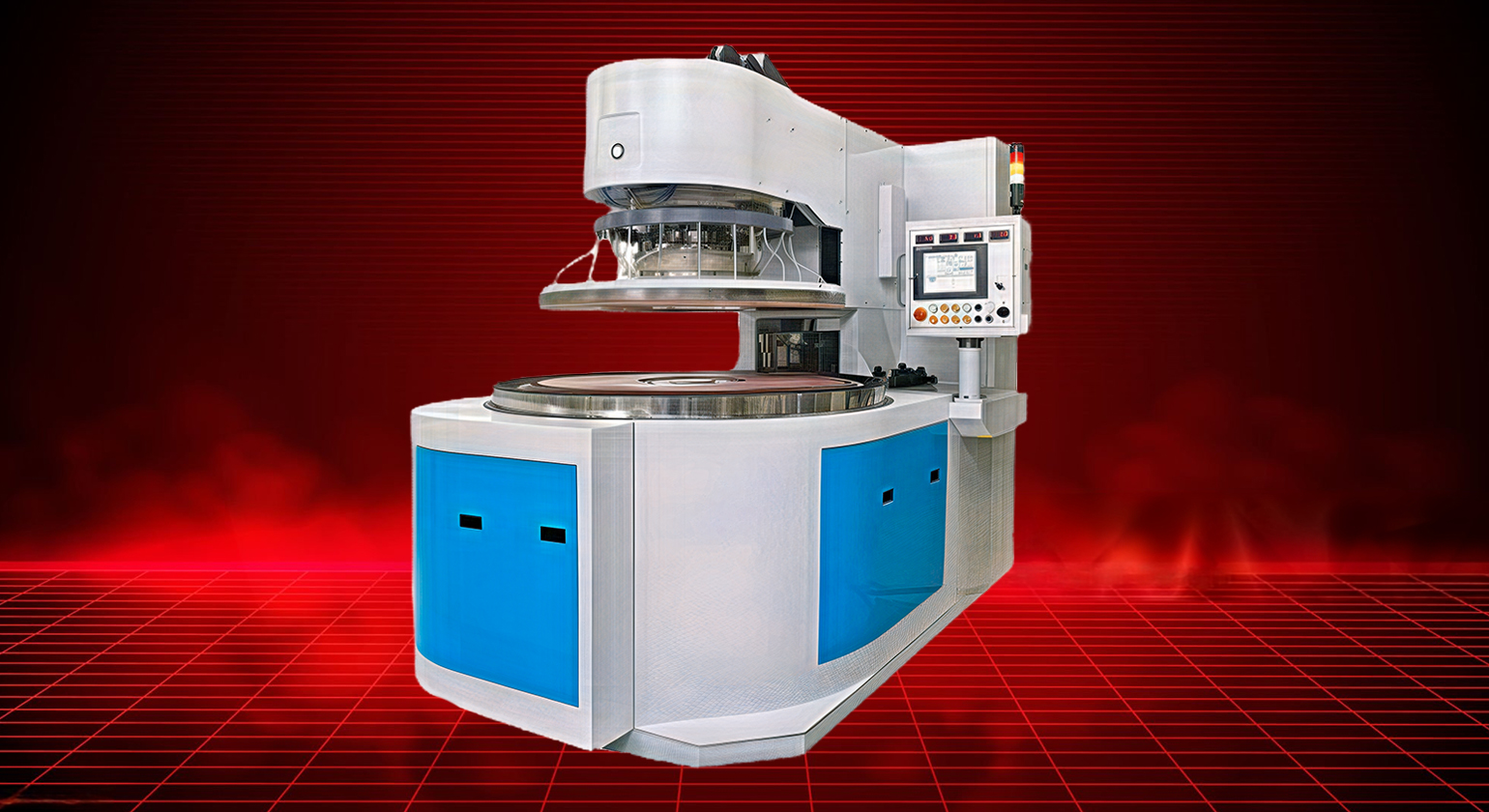

This CNC double-sided lapping machine is ideal for high-precision finishing of flat components. Widely used in industries such as:

• Mechanical seals and sealing rings.
• Precision ceramic substrates.
• Fuel injection components and nozzles.
• Hydraulic pump plates and rotors.
• Bearing races and valve components.
• Piston rings and gauge blocks.
• Hard metal parts, magnetic materials, and glass parts.
• Precision molds and carbide inserts.
